A backflow preventer helps keep water moving in the intended direction and protects the public water supply from contamination. In a fire sprinkler system, it also needs to allow the system to receive the water flow and pressure it depends on during an emergency.
Staying compliant usually means selecting the correct assembly, installing it in an approved location, testing it after installation, completing required annual testing, and submitting clear documentation to the local water authority or Authority Having Jurisdiction.
At CertaSite, backflow prevention service includes installation, inspection, testing, maintenance, and repair as part of a coordinated fire protection program. That means your backflow device, sprinkler system, reports, and recurring service schedule can be managed together instead of living on separate calendars and hoping they eventually meet.
Why Does Backflow Prevention Matter?
Backflow is the unintended reversal of water through a cross-connection between potable and non-potable systems. If that happens, contaminants can enter a building’s plumbing or the public drinking water supply.
The EPA’s guidance on cross-connection control and backflow prevention explains that cross-connections may exist between public water systems and fire sprinkler systems, irrigation systems, or other private piping. A drop in public water pressure or an increase in pressure on the building side can create the conditions for backflow.
In a fire protection system, the backflow preventer also affects water delivery to the sprinklers. A damaged, incorrectly installed, frozen, or poorly maintained device can create pressure and flow problems that affect the larger system.
CertaSite’s guide to the role of backflow devices in fire protection systems explains how regular testing can identify leaks, valve failures, corrosion, and pressure concerns before they compromise fire protection or create regulatory problems.
The backflow preventer may not be the most noticeable equipment in the building. That’s fine. Its job is to protect the water supply, not win the mechanical room beauty contest.
What Causes Backflow?
Backflow generally occurs through either backpressure or backsiphonage.
- Backpressure happens when pressure inside the building’s piping becomes greater than the pressure in the public water supply. Pumps, elevated tanks, boilers, and other equipment may create that pressure.
- Backsiphonage occurs when pressure in the public water supply drops below the pressure in the connected piping. Water main breaks, firefighting demand, system flushing, or other disruptions may contribute to that pressure change.
The American Water Works Association’s cross-connection policy emphasizes that water utilities and end users share responsibility for preventing contamination and maintaining backflow prevention assemblies. It also supports installation, periodic testing, and maintenance based on the hazard and hydraulic conditions present.
The exact backflow preventer you need depends on the connection, hazard level, system design, local utility requirements, and AHJ expectations. This isn’t a “one valve fits all” situation.
What Types of Backflow Preventers Are Used?
Several types of backflow prevention devices and assemblies are used in commercial plumbing and fire protection systems.
Common examples include:
- Double check valve assemblies: Use two check valves to provide protection and are commonly found in certain fire protection applications
- Reduced pressure zone assemblies: Add a relief valve between two check valves and are used where a higher degree of protection is required
- Double check detector assemblies: Commonly used on fire service connections and include a bypass meter to detect low water use
- Reduced pressure detector assemblies: Combine high-hazard protection with a metered bypass for fire protection applications
- Pressure vacuum breakers: Protect against backsiphonage in certain plumbing or irrigation applications
- Air gaps: Provide physical separation between potable and non-potable systems
CertaSite’s guide to backflow preventer devices explains how double check valve and reduced pressure zone assemblies work and why different applications require different levels of protection.
The correct assembly should be selected by qualified professionals and approved by the governing water authority or AHJ. It needs to match the hazard, flow demand, system type, and installation conditions—not simply the available space between two pipes.
Who Can Perform Annual Backflow Testing?
Annual backflow testing should be completed by a tester who meets the licensing, certification, registration, and equipment requirements of the local water authority or jurisdiction.
Those requirements vary by state, county, municipality, and water provider. Some authorities accept specific national or regional certifications, while others maintain their own tester registration process or approved tester list.
The USC Foundation for Cross-Connection Control’s backflow tester certification information demonstrates why tester approval needs to be confirmed locally rather than assumed.
Before scheduling a test, confirm that the provider:
- Holds the required certification or license
- Is approved by your water authority
- Can test your specific assembly type
- Uses properly maintained and calibrated test equipment
- Carries appropriate insurance
- Can submit the required report
- Can repair and retest failed assemblies
- Understands fire sprinkler system requirements
CertaSite’s backflow device service is performed by qualified professionals who meet applicable testing and inspection requirements in the markets they serve.
The important question isn’t, “Can you test this?” It’s, “Can you test it, document it, submit it, and fix it if it fails?”
How Often Is Backflow Testing Required?
Backflow prevention assemblies are commonly tested annually, although the exact schedule is established by the local water authority, plumbing code, fire code, or AHJ.
Testing may also be required:
- After initial installation
- After repair or internal maintenance
- After relocation
- After a failed test
- When required by the water provider
- After a suspected backflow event
- When changes are made to the connected system
CertaSite’s backflow prevention service can be coordinated with fire sprinkler inspection and forward-flow testing where applicable.
Because local programs differ, building owners should confirm the test due date, approved reporting method, and tester requirements with their water provider. The safest schedule is the one based on your actual device and jurisdiction—not the one someone remembers from a different property three counties away.
CertaSite’s Inspection Cycles for Fire and Life Safety Systems can also help facility teams understand how backflow testing fits into the larger service schedule for water-based fire protection systems.
What Is Included in an Annual Backflow Test?

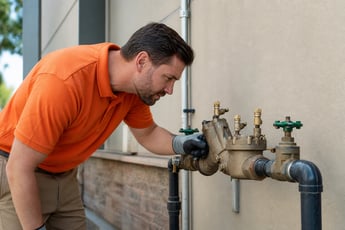

An annual backflow test evaluates whether the assembly’s internal valves, relief components, and shutoffs operate within the required performance limits.
The exact procedure depends on the assembly type, but a qualified tester may:
- Identify the assembly type, manufacturer, model, size, and serial number
- Inspect the device for damage, corrosion, leakage, or tampering
- Confirm that test cocks and shutoff valves are accessible
- Connect calibrated differential-pressure test equipment
- Test each check valve
- Test the relief valve or air inlet where applicable
- Record pressure readings
- Determine whether the assembly passes or fails
- Complete authorized repairs
- Retest the device after repair
- Restore valves and equipment to their normal positions
- Submit the required test documentation
Testing can briefly affect the fire sprinkler water supply, so coordination may be needed with facility contacts, the monitoring provider, and the AHJ. The tester should also follow applicable impairment procedures if the work temporarily places part of the fire protection system out of service.
NFPA 25 provides requirements for inspecting, testing, and maintaining water-based fire protection systems, which makes backflow and sprinkler coordination an important part of the service plan.
A test should end with more than a pressure reading. It should end with the system restored, the report completed, and everyone who needs to know properly informed.
What Documentation Is Required After Backflow Testing?
Backflow test documentation requirements vary by water authority, but the report should clearly identify the assembly, testing procedure, results, tester, repairs, and final status.
A complete report may include:
- Property information: Facility name, owner, service address, and water account or service number
- Assembly information: Type, manufacturer, model, size, serial number, orientation, and exact location
- Testing information: Initial test date, pressure readings, pass or fail status, and test procedure
- Tester information: Name, signature, certification number, company, and contact details
- Equipment information: Test kit identification or calibration details where required
- Repair information: Components cleaned, repaired, or replaced
- Final test results: Retest date, readings, and final pass or fail status
- Submission details: Water authority, AHJ, or reporting portal receiving the form
The USC Foundation’s sample backflow prevention assembly field test form shows the types of assembly information, readings, repair details, tester credentials, and signatures that may appear in a completed report. Local authorities may require their own forms or electronic submissions.
Building owners should keep a copy of the completed report with their inspection records and confirm that the required authority received it. A backflow test that passed but never made it into the reporting system can still create a compliance problem.
Paperwork has a remarkable ability to turn a successful service visit into an unanswered reminder letter.
What Happens If a Backflow Preventer Fails Testing?
A failed backflow test means one or more components didn’t meet the required performance criteria.
Common causes include:
- Debris inside a check valve
- Worn seals or springs
- Corrosion
- Leaking shutoff valves
- Damaged test cocks
- Incorrect relief valve opening pressure
- Freeze damage
- Improper installation
- Internal wear or fouling
- Pressure conditions outside the expected range
Depending on the assembly and its condition, the tester may be able to clean, repair, or replace internal components. The assembly should then be retested, and the final results should be documented.
If the device can’t be repaired, replacement may be necessary. The governing authority may also set a deadline for repair and retesting, particularly when the assembly protects the public water supply or a fire protection system.
CertaSite’s article on the role of backflow devices explains how failed check valves, incorrect relief valve operation, rust, and delayed testing can affect the assembly and the connected sprinkler system.
A failed test isn’t the end of the process. It’s the system’s way of saying, “This needs attention before the report can say we’re done.”
Can Backflow Testing Be Bundled With a Sprinkler Inspection?
Yes, backflow testing can often be coordinated with a fire sprinkler inspection.
That coordination makes sense because the backflow preventer is part of the sprinkler system’s water supply. Testing it during the same service window can help facility teams manage scheduling, system shutdowns, monitoring notifications, reporting, and follow-up repairs more efficiently.
Bundling backflow testing with fire sprinkler service can provide:
- Fewer service visits
- Better coordination of valve closures and impairments
- More consistent testing records
- One point of contact for deficiencies
- Easier scheduling across multiple facilities
- Better visibility into water supply and sprinkler performance
- Coordinated repair quotes and follow-up testing
Depending on local requirements, the backflow test report may still need to be submitted separately to the water authority. Bundling the work simplifies the visit, but it doesn’t erase the paperwork.
Unfortunately, no valve has yet been invented that prevents forms from flowing into separate portals.
How Does One Find a Licensed Backflow Tester?
Start with the authority that requires the test. Your municipal water department, public utility, environmental health department, or cross-connection control program may maintain an approved tester list.
When reviewing providers, verify:
- Current tester certification or licensing
- Approval in the property’s jurisdiction
- Experience with fire protection assemblies
- Familiarity with DCVA, RPZ, DCDA, or RPDA devices where applicable
- Ability to submit reports to the local authority
- Repair and retesting capabilities
- Appropriate insurance
- Test equipment calibration
- Availability for recurring annual service
- Coordination with sprinkler inspections and impairments
Don’t rely only on a business card, an old certification number, or the phrase “we do backflow.” Contact the water authority or use its approved tester directory to confirm current standing.
If you’re comparing providers, CertaSite’s 5 Questions You Should Ask a Fire Protection Company can help you evaluate qualifications, reporting, service scope, and long-term support.
A dependable tester should understand both sides of the job: protecting the water supply and preserving the readiness of the fire sprinkler system.
What Is Included in Backflow Preventer Installation?
Professional installation starts with identifying the hazard, connected system, required assembly, and expectations of the water authority and AHJ.
The process may include:
- System and hazard review: The provider evaluates the water service, fire sprinkler demand, cross-connection risk, available pressure, and local requirements.
- Assembly selection: The correct type and size are selected based on the hazard level, service connection, system demand, and approved equipment requirements.
- Plan review and permitting: Drawings, product information, permits, and authority approvals may be required before installation.
- Installation and connection: The assembly is installed with the required valves, test cocks, clearances, supports, drainage, and access for future testing.
- Freeze and environmental protection: Exterior or unconditioned installations may require heated enclosures, insulation, drainage, or other weather protection.
- Initial testing: A qualified tester verifies that the newly installed assembly operates correctly.
- Documentation and submission: The final test report, assembly information, permits, and approval documents are provided to the applicable authority and building owner.
The AWWA cross-connection policy supports selecting and installing backflow prevention assemblies based on potential hazards and hydraulic conditions, followed by periodic testing and maintenance.
The assembly also needs to remain accessible. Installing it where no one can safely test, drain, or repair it is a creative use of space, but not a particularly useful one.
How Much Does Backflow Preventer Installation Cost?
Backflow preventer installation cost varies because every project has different pipe sizes, assembly types, water demands, site conditions, and permitting requirements.
A small plumbing assembly in an accessible mechanical space will have different costs than a large fire protection backflow assembly that requires excavation, new piping, a heated enclosure, drainage, or coordination with an active sprinkler system.
Common cost factors include:
- Assembly type and size
- Fire protection versus plumbing application
- Required flow capacity
- Existing water pressure
- Pipe materials and configuration
- Indoor or outdoor installation
- Excavation or concrete work
- Drainage requirements for relief-valve discharge
- Heated enclosure or freeze protection
- Permits and plan review
- Water shutdown and impairment coordination
- Initial testing and documentation
- Required alarms, meters, or monitoring
- Access and labor conditions
- Repairs to existing piping or valves
The project may also involve pressure-loss considerations. Adding or replacing a backflow assembly can affect available pressure, which may need to be reviewed as part of the sprinkler system’s water supply.
The most useful proposal should separate equipment, labor, permits, testing, reporting, enclosure work, and ongoing service. A low price can become much less charming when drainage, testing, or the actual valve appears later as an “additional item.”
What Should Be Included in an Installation Proposal?
A backflow installation proposal should clearly explain the device being installed, why it’s appropriate, how the work will affect the building, and what’s included after installation.
Look for:
- Assembly details: Type, manufacturer, model, size, rating, and approval status
- Design basis: Hazard level, flow requirements, pressure considerations, and local authority requirements
- Installation scope: Piping, valves, supports, drainage, enclosure, heat, excavation, and restoration
- System coordination: Water shutdowns, sprinkler impairments, monitoring notifications, and operational impact
- Permits and approvals: Plan review, inspections, water authority coordination, and AHJ requirements
- Testing: Initial certification testing and any required sprinkler or forward-flow testing
- Documentation: Test reports, assembly records, permits, photographs, and service recommendations
- Repair and maintenance support: Warranty, parts, annual testing, repairs, and retesting
- Pricing and exclusions: Equipment, labor, permits, testing, reporting, and items that aren’t included
A clear proposal helps you compare providers and understand the full cost of putting the assembly into service.
“Install backflow preventer” is a scope description in roughly the same way “fix building” is a maintenance plan. More detail is helpful.
What’s the Best Way to Prevent Backflow Preventers From Freeze Damage?
Backflow preventers installed outdoors or in unheated spaces can be vulnerable to freezing. Trapped water can expand and damage check valves, relief components, shutoffs, fittings, and the assembly body.
Freeze protection may include:
- An approved heated enclosure
- Insulation designed for the assembly
- Approved freeze-protection equipment
- Proper drainage
- Routine cold-weather inspection
- Clear access for testing and repairs
Any solution needs to preserve access for testing and allow relief valves to discharge safely.
CertaSite’s guide to winterizing fire protection systems explains why backflow preventers need proper enclosures and heat and how annual testing can be coordinated with sprinkler inspection.
If freeze damage is suspected, the device should be inspected and tested before it’s assumed to be operational. A backflow preventer wrapped in an improvised blanket may look cozy. That doesn’t make it a code-compliant enclosure.
How Does CertaSite Simplifies Backflow Testing and Service?
At CertaSite, backflow prevention is part of a bigger promise: making fire and life safety more dependable, more organized, and easier to manage.
CertaSite helps businesses install, inspect, test, maintain, repair, and document backflow devices while coordinating related fire sprinkler inspections and water-based system service.
That means:
- Fewer disconnected vendors
- Clearer test reports
- Better deficiency tracking
- Easier access to service history
- More consistent annual scheduling
- Coordinated repairs and retesting
- A clearer view of the systems that depend on the building’s water supply
CertaSite can also coordinate backflow service with sprinkler inspections, repairs, and related fire protection services, so facility teams don’t have to manage each requirement in isolation.
Common Questions About Backflow Preventers
Who can perform annual backflow testing
Testing should be completed by a tester who meets the certification, licensing, registration, and equipment requirements of the local water authority or jurisdiction. Requirements vary, so confirm the provider’s current approval before scheduling.
Is backflow testing required every year
Annual testing is common and is required by many water authorities and fire protection programs. Testing may also be required after installation, repair, relocation, or a failed test. Confirm the exact schedule with your local water provider or AHJ.
What documentation should I receive
You’ll typically receive a test report identifying the property, assembly, tester, test date, readings, initial result, repairs, final result, and any required certification or test-equipment information.
Who submits the backflow test report
The tester often submits the report, but responsibilities vary by jurisdiction. Building owners should confirm who’ll submit it, where it needs to go, and whether a separate copy should be retained.
Can backflow testing be bundled with sprinkler inspection
Yes. Backflow testing is commonly coordinated with fire sprinkler inspection because both involve the water supply and may require valve, monitoring, and impairment coordination.
How do I find a licensed backflow tester
Check with your water authority, public utility, health department, or cross-connection control program for approved tester requirements or directories. Then verify the provider’s certification, insurance, equipment calibration, reporting capabilities, and fire protection experience.
What happens if the device fails
The assembly may need cleaning, repair, component replacement, or full replacement. It should be retested after corrective work, and the final results should be documented and submitted as required.
What affects installation cost
Cost depends on assembly type and size, flow and pressure requirements, piping, location, drainage, freeze protection, permits, testing, access, excavation, and coordination with the sprinkler system.
Does a new backflow preventer need testing
Yes. New assemblies are commonly tested after installation to confirm that they operate properly and to establish the compliance record required by the governing authority.
CertaSite Keeps Water Moving the Right Way
Backflow prevention protects more than a piece of piping. It helps protect the public water supply and supports the water-based fire protection systems your building depends on.
The requirements can involve licensed testers, annual deadlines, local forms, repair follow-up, and coordination with sprinkler inspections. The good news is that you don’t have to manage those pieces through reminders, old tags, and a folder named “water stuff.”
CertaSite helps make backflow installation, annual testing, reporting, and maintenance easier to manage.
To schedule backflow testing, request an installation quote, or combine service with your next sprinkler inspection, contact CertaSite.
